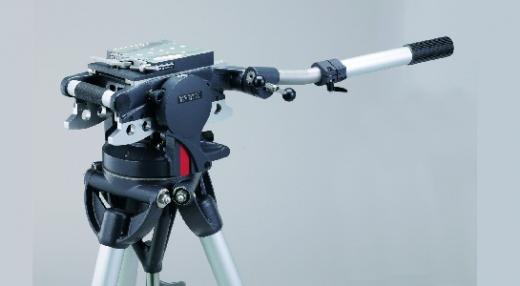

The TU-04 Head incorporates a unique balancing mechanism consisting of spring and cam which enable perfect tilt balance. The head can accommodate a load of up to 88LBS(40kg). Continuously variable fluid drag with wide ambient temperature range promises optimum torque adjustment and smoothness.

FEATURES
•Variable Fluid Leaf Drag System: VISCAM
•Perfect Counterbalance System: HEARTCAM
•Mount:150mm Ball & M40 Mini Mitchell Mount
•Quick, Safe & Reliable V-shape Wedge

SPECIFICATION
- Max. Payload = 40 kg/ 88.2 lbs
- Pan Range = 360°
- Tilt Range = ±60
- Platform Adjustment = ±50 mm/ 2"
- Counterbalance = Continuous Perfect Balance
- Pan & Tilt Fluid Drag = Continuous
- Temperature Range = －40°C ～ ＋60°C
- Camera Fixing = V-shape Wedge (TV-53B)
- Screw for Wedge Plate = 3/8"×2
- Pan Bar = 2 telescopic pan bars (TJ-33×2)
- Height (150mm Ball Type) = 225 mm/ 9"
- Height (M40 Mini Mitchell Type) = 223 mm/ 9"
- Width = 235 mm / 9"
- Depth = 183 mm / 7"
- Weight = 8.5kg/ 18.7 lbs
- Mount = 1. 150mm Ball Type, 2. M40 Mini Mitchell Type
- Suitable Tripod/Pedestal = TT-53, TP-63, TP-64
